Brand Name : | CJ |
Model Number : | 500 |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 30sets/months |
Delivery Time : | 25 working days |

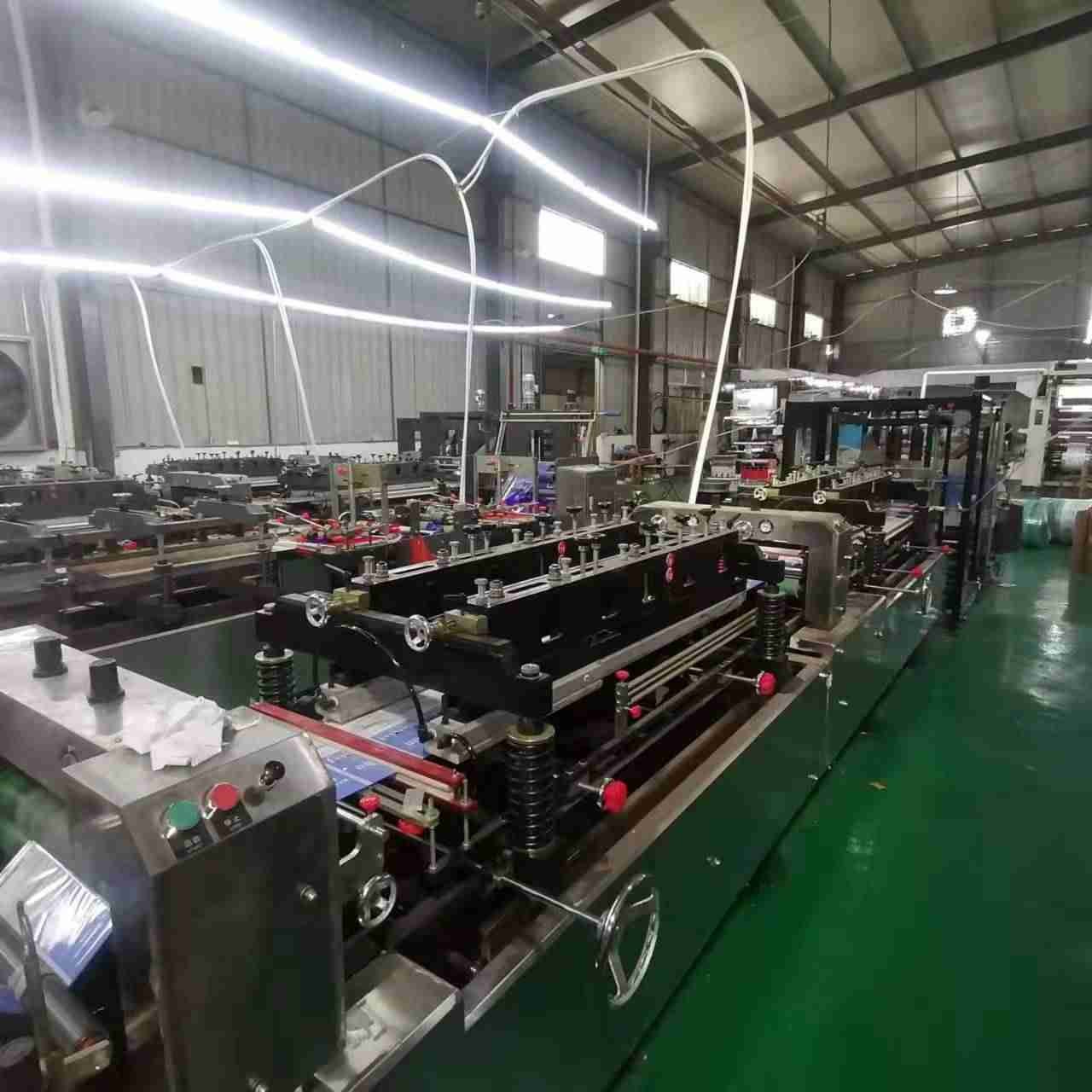

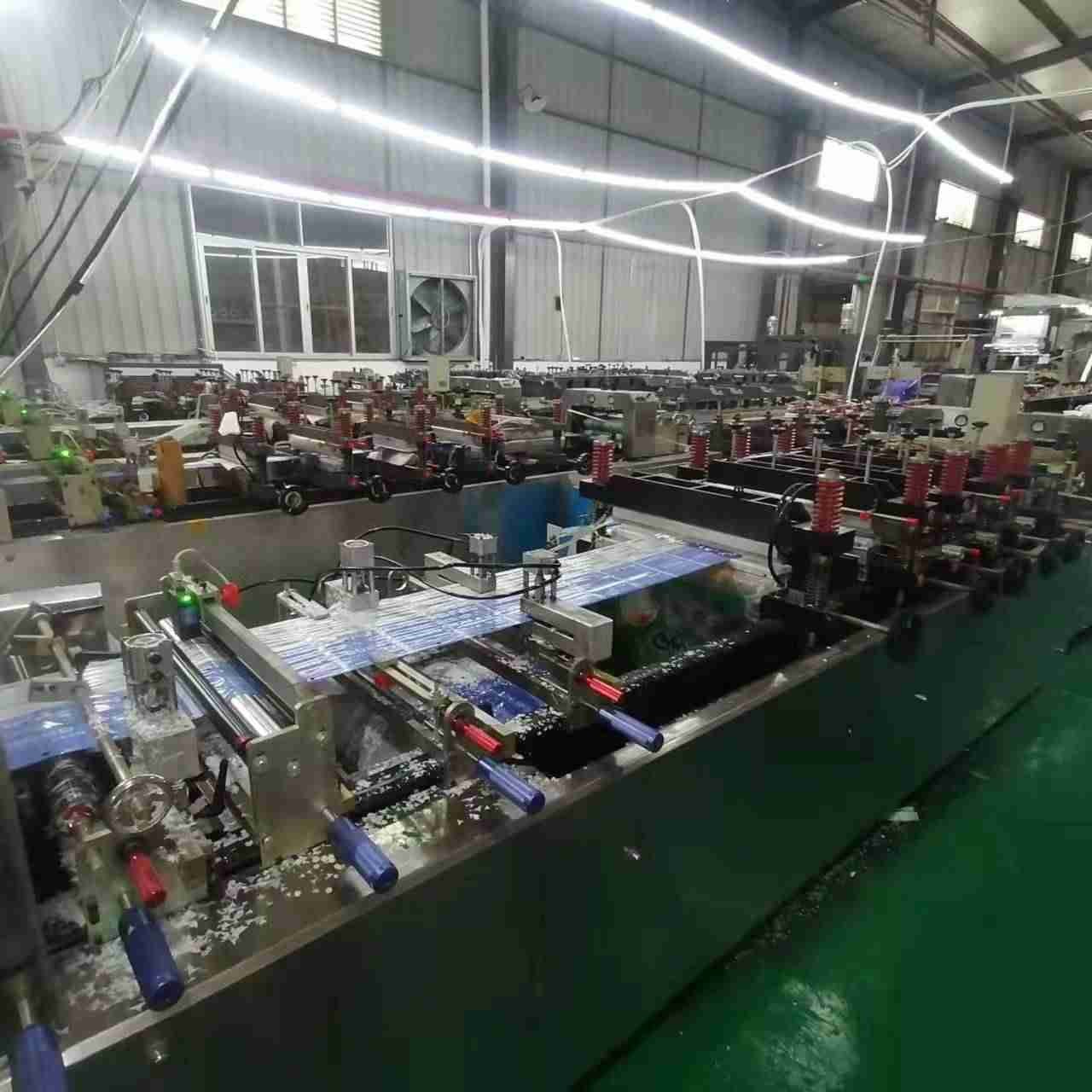

The Three Side Sealing & Zipper Machine is a versatile and efficient packaging solution for various types of products. It is specifically designed for the packaging of granular, powder, liquid, and solid products, making it suitable for a wide range of industries such as food and beverage, cosmetics, pharmaceuticals, and more.
Specifications:
Suitable material | Suitable for various heat sealing composit films |
Tube size | Max width:1000mm,max diameter:Ф800mm |
Film thickness | 0.045-0.15mm(single layer) |
Bag making speed | three side sealing: 250 segments/min, Three side zippered bag: 200 segments/min |
Bag making width | 75-500mm |
Bag making length | 440mm(longitudinal sealing twice) |
Control system | PLC control system |
Material traction mechanism | Servo motor system traction |
Discharge system | Discharge shaft,tripod or K frame |
Braking device | Constant tension encoder magnetic particle control system |
Overall power | 40kw |
Cooling water | About 15L/min |
Air supply | 0.6Mpa |
Power supply | Three phase 380V/50HZ |
Weight | Apx5000kgs |
Dimension | 13×2.×2.2m(L×W×H) |
![]() |
