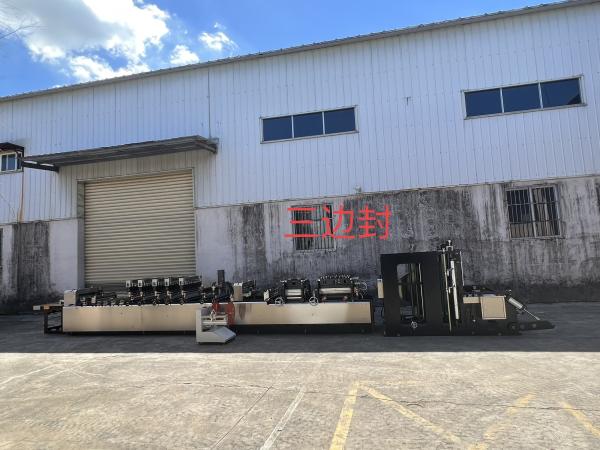

    PLC Control K Frame Three Side Sealing Machine 380V/50HZ

    CJZD-500 K frame Three side sealing pouch making machine


    Three side sealing machine is suitable for three-side bag sealing composite film bag making process, and can meet various production requirements of wide range of bag making specifications, high production efficiency and large batch size .


    Specifications:

    Suitable materialSuitable for various heat sealing composit films
    Tube sizeMax width:1000mm,max diameter:Ф1000mm
    Film thickness0.045-0.15mm(single layer)
    Bag making speed250segments/min
    Bag making width75-500mm
    Bag making length440mm(longitudinal sealing twice)
    Control systemPLC control system
    Material traction mechanismServo motor system traction
    Discharge systemDischarge shaft,tripod or K frame
    Braking deviceConstant tension encoder magnetic particle control system
    Overall power35kw
    Cooling waterAbout 15L/min
    Air supply0.6Mpa
    Power supplyThree phase 380V/50HZ
    WeightApx4000kgs
    Dimension

    10×2×2.2m(L×W×H)


    Applications:

    Three-side sealing bag has good barrier performance, moisture resistance, low heat sealing and high transparency, suitable for three-sided sealed bag products such as tea, candy, powder bag, snack food, nuts and seeds, rice, makeup bag, mask eye mask bag, medicine bag etc.
